2N7002V N-Channel MOSFET: Pinout, Datasheet and Application

Q: How do mosfets work?

It works by varying the width of a channel along which charge carriers flow (electrons or holes). The charge carriers enter the channel at the source and exit via the drain. The width of the channel is controlled by the voltage on an electrode is called a gate which is located between source and drain.

Q: What is a 2N7002V?

The 2N7002V is an N-channel enhancement-mode Field Effect Transistor is produced using high cell density, DMOS technology. It minimizes on-state resistance while providing rugged, reliable and fast switching performance.

Q: What is N channel Mosfet?

An N-Channel MOSFET is a type of MOSFET in which the channel of the MOSFET is composed of a majority of electrons as current carriers. When the MOSFET is activated and is on, the majority of the current flowing are electrons moving through the channel.

Sophie

Published: 09 July 2021 | Last Updated: 09 July 2021

561

2N7002V

ON Semiconductor

MOSFET 2N-CH 60V 0.28A SOT-563F

Purchase Guide

MOSFET 2N-CH 60V 0.28A SOT-563F

The 2N7002V is a dual N-Channel MOSFET transistor. This article covers its pinout, datasheet and more detailed information of 2N7002V.

How a MOSFET Works

Catalog

2N7002V Description

The 2N7002V is a 8 pins dual N-Channel 60V 0.28A MOSFET transistor, and its package is SOT-563F.

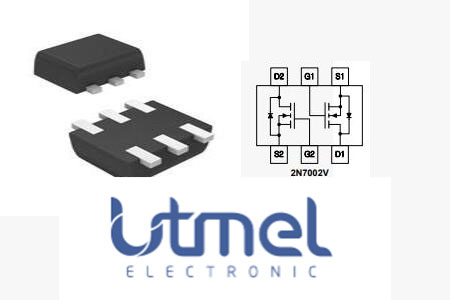

2N7002V Pinout

2N7002V Pinout.jpg

2N7002V Pinout

2N7002V CAD Model

Symbol

2N7002V Symbol.jpg

2N7002V Symbol

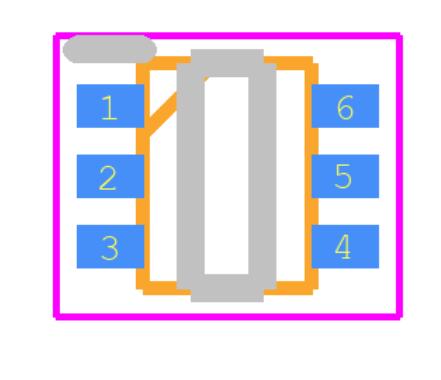

Footprint

2N7002V Footprint.jpg

2N7002V Footprint

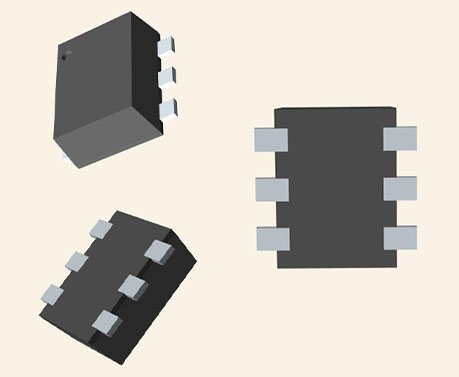

3D Model

2N7002V 3D Model.jpg

2N7002V 3D Model

2N7002V Features

Dual N-Channel MOSFET
Low On-Resistance
Low Gate Threshold Voltage
Low Input Capacitance
Fast Switching Speed
Low Input/Output Leakage
Ultra-Small Surface Mount Package
RoHS Compliant

Specification

Parts with Similar Specs

The three parts on the right have similar specifications to ON Semiconductor & 2N7002V.

Part Number
Manufacturer
Mount
Package / Case
Drain to Source Voltage (Vdss)
Continuous Drain Current (ID)
Gate to Source Voltage (Vgs)
Max Power Dissipation
Power Dissipation
Radiation Hardening
View Compare
2N7002V
ON Semiconductor
Surface Mount
SOT-563, SOT-666
60V
280 mA
20 V
250 mW
250 mW
No
2N7002VAC-7
Diodes Incorporated
Surface Mount
SOT-563, SOT-666
-
305 mA
20 V
250 mW
250 mW
No
2N7002V
VS
2N7002VAC-7
DMN601VK-7
Diodes Incorporated
Surface Mount
SOT-563, SOT-666
60V
280 mA
20 V
150 mW
150 mW
No
2N7002V
VS
DMN601VK-7
2N7002VC-7
Diodes Incorporated
Surface Mount
SOT-563, SOT-666
60V
280 mA
20 V
150 mW
150 mW
No
2N7002V
VS
2N7002VC-7

2N7002V Application

General usage and suitable for many different applications.

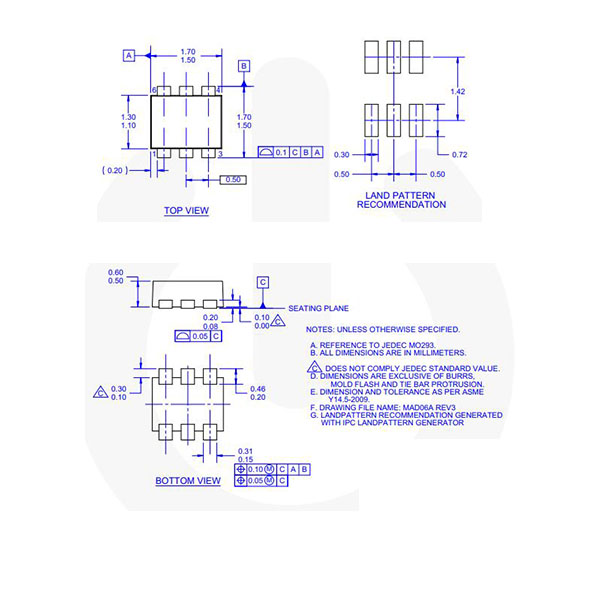

2N7002V Package

2N7002V Package.jpg

2N7002V Package

2N7002 Manufacturer

ON Semiconductor (Nasdaq: ON) offers a comprehensive portfolio of energy efficient power and signal management, logic, discrete and custom solutions to help design engineers solve their unique design challenges in automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace and power supply applications. It operates a responsive, reliable, world-class supply chain and quality program, and a network of manufacturing facilities, sales offices and design centers in key markets throughout North America, Europe, and the Asia Pacific regions.

Datasheet PDF

Download datasheets and manufacturer documentation for ON Semiconductor 2N7002V.

Datasheets :
2N7002V/VA Datasheet
pid_6379006_2n7002v-on-semiconductor-datasheet-139009427.pdf
PCN Assembly/Origin :
Mult Dev Material Supply Chg 15/Aug/2019
Environmental Information :
Material Declaration 2N7002V
PCN Design/Specification :
Mold Compound 20/Aug/2008
Logo 17/Aug/2017
PCN Packaging :
Mult Devices 24/Oct/2017

Popularity by Region

Frequently Asked Questions

What is the threshold voltage of 2N7002V?

1.76V.

What is the operating temperature of 2N7002V?

-55°C ~ 150°C (TJ).

When did 2N7002V publish?

In 2008.

How about the continuous drain current (ID) of 2N7002V?

280mA.

How do mosfets work?

It works by varying the width of a channel along which charge carriers flow (electrons or holes). The charge carriers enter the channel at the source and exit via the drain. The width of the channel is controlled by the voltage on an electrode is called a gate which is located between source and drain.

What is a 2N7002V?

 The 2N7002V is an N-channel enhancement-mode Field Effect Transistor is produced using high cell density, DMOS technology. It minimizes on-state resistance while providing rugged, reliable and fast switching performance.

What is N channel Mosfet?

 An N-Channel MOSFET is a type of MOSFET in which the channel of the MOSFET is composed of a majority of electrons as current carriers. When the MOSFET is activated and is on, the majority of the current flowing are electrons moving through the channel.

RECOMMENDED BLOGS

2N7002V

ON Semiconductor

In Stock: 9391
